Re: PIXIE2023: One of the cleanest output Pixie?

#4576

Hi Adam,

The link doesn't work for me.

Jim WB4ILP?

Show quoted text

On Fri, Nov 10, 2023, 8:14 PM Adam Rong <rongxh@...> wrote:

Guys,

See my recent post about spurious test result about different Pixie designs.

Thanks,

Adam

PIXIE2023: One of the cleanest output Pixie?

#4575

Guys,

See my recent post about spurious test result about different Pixie designs.

Thanks,

Adam

Re: [email protected] Digest #396

#4574

> I would agree - John build it!
> (its got to be more reliable than a QDX! lol)

WHY?

73 Hans G0UPL

Show quoted text

On Fri, Nov 10, 2023 at 6:01?AM [email protected] <[email protected]> wrote:

This is a digest for [email protected]. View all your groups, and edit your subscriptions, here.

Do not reply to this email. To reply to a message, click the Reply link under the message.

Topics in this digest:

.

1. Re: What to do with my early 2019 unopened D4D DSB kit?

messages:

.

1a.?

Re: What to do with my early 2019 unopened D4D DSB kit?
From: ve3ega
Date: Fri, 10 Nov 2023 02:07:09 +03

Adam,

I would agree - John build it!
(its got to be more reliable than a QDX! lol)

73

View/Reply Online | Reply To Group | Reply To Sender | Mute Topic | Top ^ | New Topic

? 2023 Groups.io

You are receiving this email because you are subscribed to [email protected] via hans.summers@.... You can unsubscribe here.

Re: What to do with my early 2019 unopened D4D DSB kit?

ve3ega

#4573

Adam,

I would agree - John build it!
(its got to be more reliable than a QDX! lol)

73

Re: Wanted: 14.074 MHz crystal

#4572

KC9ON has 20 meter crystals - 14.050, 060, 070

BTW, my new PIXIE 2023 converted to 20 meters is doing a super job!? The above website?tells of the small changes to convert to this band.? Also, I changed to 2N2222 as the final.? ?73's N9EGT

Show quoted text

On Sun, Oct 29, 2023 at 6:56?AM <wb2cba@...> wrote:

--
73

Barb WB2CBA

--

Wayne F. Steury, D. Min.

Phone or text: 260-525-8933

Re: Wanted: 14.074 MHz crystal

#4571

--
73

Barb WB2CBA

Re: Wanted: 14.074 MHz crystal

#4570

this is from the? Futurlec.com site... may be of interest. It's the module not the xtal.? Although it says not in stock sometimes Alan can fulfill small orders?
if you ask him nicely.? price? is? USD 1.2 each. He does do very small orders last time? checked.? ?His other xtal frequencies may be worth looking at but he's
not a specific HR? component supplier.? ?regards? TEF.? ? a pletora of solutions exist for getting a sine out ofoa Cmos? xtal osc.? The one using? a Common Gate J310 seems to work well. That's easily capable of driving a? BS 170? buffer amplifier stage. to get? up to? 1 - 2 mW level at now impedance ie? 50 Z.

OSC14.0625

14.0625MHz Crystal Oscillator

No

Full Can

1

1.20

Re: Wanted: 14.074 MHz crystal

#4569

Or, if you really wanted 14.080, try VE3AB:?

73
John, VK4TJ

Re: Wanted: 14.074 MHz crystal

#4568

开云体育

Ron,

I have hundreds left. The price is 2 USD each. Postage is 6 USD. You can directly PayPal.

Thanks,

Adam

On 2023/10/29 5:42, Ron Stone wrote:

Show quoted text

Hi - If anyone happens to have a spare or knows where I can find a 14.074 MHz or possibly a 14.08 MHz crystal, please contact me via my qrz.com email address.? Thanks.

73,
Ron (KA3J)

Wanted: 14.074 MHz crystal

#4567

Hi - If anyone happens to have a spare or knows where I can find a 14.074 MHz or possibly a 14.08 MHz crystal, please contact me via my qrz.com email address.? Thanks.

73,
Ron (KA3J)

Re: ADX-S+ESP32(Bluetooth Audio)

#4566

Incorporating a TFT (display) the LEDs become redundant.?

Using the power of the ESP-32 for decoding purposes makes it a truly stand alone unit.?

In ATS-25 it's already been demonstrated that, one can decode these signals using the ARM core, then why not think on these lines.?

Using an ESP-32 for only replacing the Arduino, in my opinion is an over kill.?

IMHO, let's not be in a hurry to design a new pcb yet.?

Charudatt - VU2UPX

Show quoted text

On Fri, 27 Oct, 2023, 11:53 am Adam Rong, <rongxh@...> wrote:

Without LCD, the decoding feature looks useless. A perfect match is the FT8CN App on Android devices. The Bluetooth audio link is a good addition. Of course, there are a few Bluetooth modules available.

Thanks,
Adam

在 2023年10月27日，11:11，Charudatt Uplap <charudattu@...> 写道：

?
Thanks for the introducing the ESP32 in this project.
?
Can we further look at features offered by ATS-25 Rx into this project.
?
Specifically , decoding of FT8 by the ESP32 itself. The ATS-25 decodes FT8 , CW and maybe RTTY using this kit.
?
?
regards
charudatt – VU2UPX
?
From: [email protected] <[email protected]> On Behalf Of h.kawaji@...
Sent: 27 October 2023 07:10
To: [email protected]
Subject: [CRKits] ADX-S+ESP32(Bluetooth Audio)
?
I modified the ADX-S and replaced the Arduino Nano with an ESP32 Devkit.
The ESP32's bluetooth audio (headset profile) allows wireless connection to a PC.
For more information, please visit?
I am very sorry, but the document is written in Japanese.
Please use a language translation tool like "DeepL" to read it.

Hitoshi, JE1RAV

Re: ADX-S+ESP32(Bluetooth Audio)

#4565

开云体育

Without LCD, the decoding feature looks useless. A perfect match is the FT8CN App on Android devices. The Bluetooth audio link is a good addition. Of course, there are a few Bluetooth modules available.

Thanks,

Adam

Show quoted text

在 2023年10月27日，11:11，Charudatt Uplap <charudattu@...> 写道：

?
Thanks for the introducing the ESP32 in this project.
?
Can we further look at features offered by ATS-25 Rx into this project.
?
Specifically , decoding of FT8 by the ESP32 itself. The ATS-25 decodes FT8 , CW and maybe RTTY using this kit.
?
?
regards
charudatt – VU2UPX
?
From: [email protected] <[email protected]> On Behalf Of h.kawaji@...
Sent: 27 October 2023 07:10
To: [email protected]
Subject: [CRKits] ADX-S+ESP32(Bluetooth Audio)
?
I modified the ADX-S and replaced the Arduino Nano with an ESP32 Devkit.
The ESP32's bluetooth audio (headset profile) allows wireless connection to a PC.
For more information, please visit?
I am very sorry, but the document is written in Japanese.
Please use a language translation tool like "DeepL" to read it.

Hitoshi, JE1RAV

Re: ADX-S+ESP32(Bluetooth Audio)

#4564

开云体育

Thanks for the introducing the ESP32 in this project.

?

Can we further look at features offered by ATS-25 Rx into this project.

?

Specifically , decoding of FT8 by the ESP32 itself. The ATS-25 decodes FT8 , CW and maybe RTTY using this kit.

?

regards

charudatt – VU2UPX

?

Show quoted text

From: [email protected] <[email protected]> On Behalf Of h.kawaji@...
Sent: 27 October 2023 07:10
To: [email protected]
Subject: [CRKits] ADX-S+ESP32(Bluetooth Audio)

?

I modified the ADX-S and replaced the Arduino Nano with an ESP32 Devkit.
The ESP32's bluetooth audio (headset profile) allows wireless connection to a PC.
For more information, please visit?

I am very sorry, but the document is written in Japanese.

Please use a language translation tool like "DeepL" to read it.

Hitoshi, JE1RAV

Re: ADX-S+ESP32(Bluetooth Audio)

#4563

Sorry, the previous address is wrong.
The correct address is?

Hitoshi, JE1RAV

Re: ADX-S+ESP32(Bluetooth Audio)

#4562

Adam,

It may be so.

Hitoshi

Re: ADX-S+ESP32(Bluetooth Audio)

#4561

开云体育

Hitoshi-San,

Thanks for sharing. Is it more convenient to redesign the PCB?

Thanks,

Adam

Show quoted text

在 2023年10月27日，09:46，h.kawaji@... 写道：

?
I modified the ADX-S and replaced the Arduino Nano with an ESP32 Devkit.
The ESP32's bluetooth audio (headset profile) allows wireless connection to a PC.
For more information, please visit?

https://github.com/je1rav/ADXS_ESP32_bluetooth/

I am very sorry, but the document is written in Japanese.

Please use a language translation tool like "DeepL" to read it.

Hitoshi, JE1RAV

ADX-S+ESP32(Bluetooth Audio)

#4560

I modified the ADX-S and replaced the Arduino Nano with an ESP32 Devkit.
The ESP32's bluetooth audio (headset profile) allows wireless connection to a PC.
For more information, please visit?

https://github.com/je1rav/ADXS_ESP32_bluetooth/

I am very sorry, but the document is written in Japanese.

Please use a language translation tool like "DeepL" to read it.

Hitoshi, JE1RAV

Re: Try PH2222 on Pixie2023

#4559

Thanks Adam !

Jim

Show quoted text

On Mon, Oct 23, 2023, 10:46 AM Adam Rong <rong@...> wrote:

Just drop in replace. Check out the pin out. No other change or heatsink is required. The mod power out is about 200mW.

On 2023/10/23 22:07, Jim Burns wrote:

OK Adam,
Any circuit changes needed to get the extra power? What is power out in mw with the mod?? Should the metal 2N2222A have a heatsink?

Thank You Adam !

Jim

On Mon, Oct 23, 2023, 9:23 AM Adam Rong <rong@...> wrote:

Jim,

Yes, I have tried one source of metal cased 2N2222A, and I got 1.5-3dB higher power.

Thanks,

Adam

On 2023/10/23 20:43, Jim Burns wrote:

Hi Adam,
Any advantage to using my metal cased 2N2222A (Multi-Comp Brand) bought from Newark Electronics?

TNX

Jim WB4ILP?

On Mon, Oct 23, 2023, 8:25 AM Adam Rong <rongxh@...> wrote:

Guys,

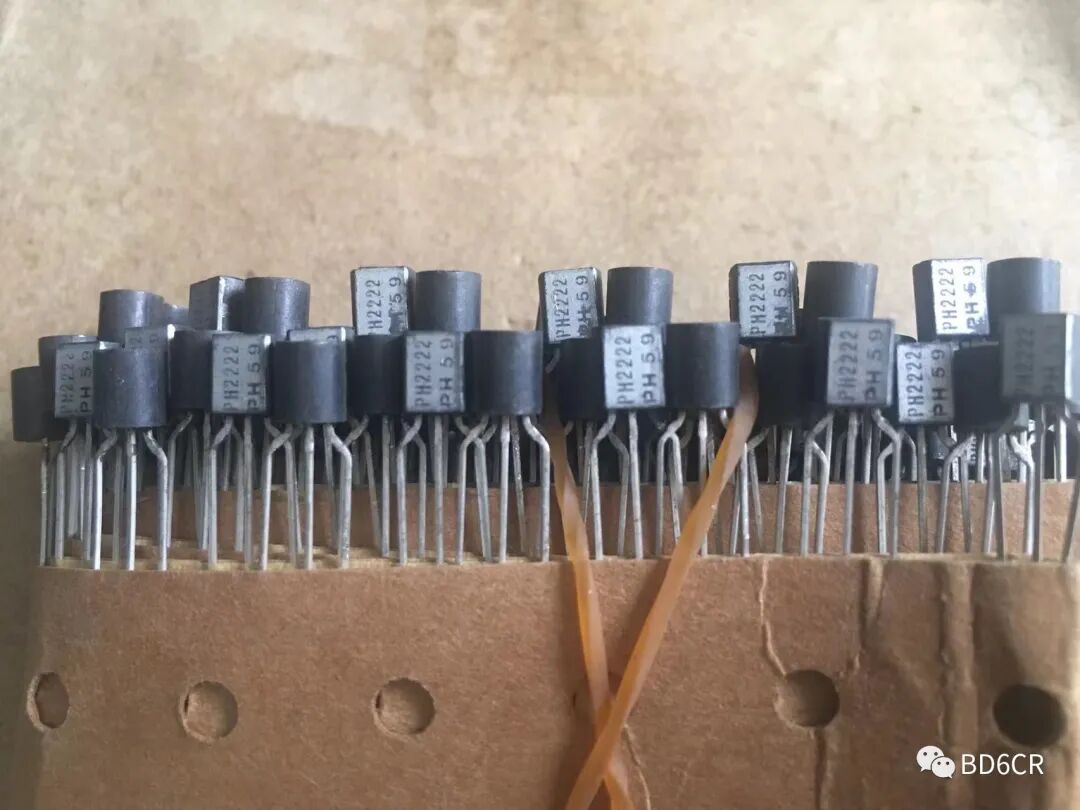

I got very positive result trying Philips PH2222 as the final for Pixie2023. I got 3.5dB higher power.

These PH2222 transistors are rather old, but they just performed very well. Please share with me your result. Have you tried some transistors on hand?

Thanks,

Adam

Re: Try PH2222 on Pixie2023

#4558

开云体育

The mod is necessary if you wish to stay at marked frequency on crystal.

Thanks,

Adam

Show quoted text

在 2023年10月24日，07:48，Wayne Steury <waynesteury@...> 写道：

?
The 8050 was the Q2 in another Pixie circuit I have built so i tried it as Q1 and the Q2 final as a 2n2222. It changes the frequency a bit but it works well. I built a small tuner to change the crystal to the desired frequency. Capacitance in series with the crystal…

Wayne N9egt?

On Mon, Oct 23, 2023 at 4:23 PM Adam Rong <rongxh@...> wrote:

Wayne,

1W is quite good at 12V. Have you seen any difference to replace Q1 with 8050?

Thanks,

Adam

On 2023/10/23 23:05, Wayne Steury wrote:

I use a 8050 as Q1 and 2N2222 in final of my newly made 2023 Pixie. It works great but now about 200-500 cycles off frequency depending on using 9 or 12 volts. Power output is 1 watt at 12 volts.?

I converted to 20 meters by changing the final output inductor and two capacitors. 56 mH and 220 pf. No cap over the inductor.?

Wayne N9EGT?

On Mon, Oct 23, 2023 at 6:25 AM Adam Rong <rongxh@...> wrote:

Guys,

I got very positive result trying Philips PH2222 as the final for Pixie2023. I got 3.5dB higher power.

These PH2222 transistors are rather old, but they just performed very well. Please share with me your result. Have you tried some transistors on hand?

Thanks,

Adam

Re: Try PH2222 on Pixie2023

#4557

The 8050 was the Q2 in another Pixie circuit I have built so i tried it as Q1 and the Q2 final as a 2n2222. It changes the frequency a bit but it works well. I built a small tuner to change the crystal to the desired frequency. Capacitance in series with the crystal…

Wayne N9egt?

Show quoted text

On Mon, Oct 23, 2023 at 4:23 PM Adam Rong <rongxh@...> wrote:

Wayne,

1W is quite good at 12V. Have you seen any difference to replace Q1 with 8050?

Thanks,

Adam

On 2023/10/23 23:05, Wayne Steury wrote:

I use a 8050 as Q1 and 2N2222 in final of my newly made 2023 Pixie. It works great but now about 200-500 cycles off frequency depending on using 9 or 12 volts. Power output is 1 watt at 12 volts.?

I converted to 20 meters by changing the final output inductor and two capacitors. 56 mH and 220 pf. No cap over the inductor.?

Wayne N9EGT?

On Mon, Oct 23, 2023 at 6:25 AM Adam Rong <rongxh@...> wrote:

Guys,

I got very positive result trying Philips PH2222 as the final for Pixie2023. I got 3.5dB higher power.

These PH2222 transistors are rather old, but they just performed very well. Please share with me your result. Have you tried some transistors on hand?

Thanks,

Adam
